Example Walkthrough¶

The following example will introduce several of the project’s modules and their functioning. It was the initial motivation for building this software and was both a source of inspiration for building modules and a testing dataset.

Context¶

The idea behind the example was to take advantage of multiple open data sets made available by institutions, associations, or open APIs and try to identify “links” (of influence or else) between French MPs and lobbyists.

With the available data, three ways of identifying links came to mind:

Tweets
Wikipedia mentions
Semantic field

Data¶

The data is available in the example/data directory. The list of files is:

deputes.csv the standard CSV export of http://www.nosdeputes.fr ‘s data. (Available at https://www.nosdeputes.fr/deputes/enmandat/csv)
hatvpmongo.json the JSON export from https://www.hatvp.fr/agora/opendata/agora_repertoire_opendata.json where the root publications has been removed to keep the array.

It should further be inserted in a Mongo database with mongoimport --jsonArray --db $DB_NAME --collection publications --file hatvpmongo.json
wiki.csv is the result of retreiving the Wikipedia pages of all MPs and splitting those into sentences to write in a CSV file $NAME,$SENTENCE for each MP.
A Postgres database dump is also available. It contains a corpus of tweets of MPs and lobbyists along with the accounts that retweeted them. The whole database dump is available to download from this Google Drive link. It is a tar archive that you can uncompress with tar -xvf twitter.dump.bz2.

If you have Postgres installed, you can then do psql twitter < twitter.dump

Anatomy of the program¶

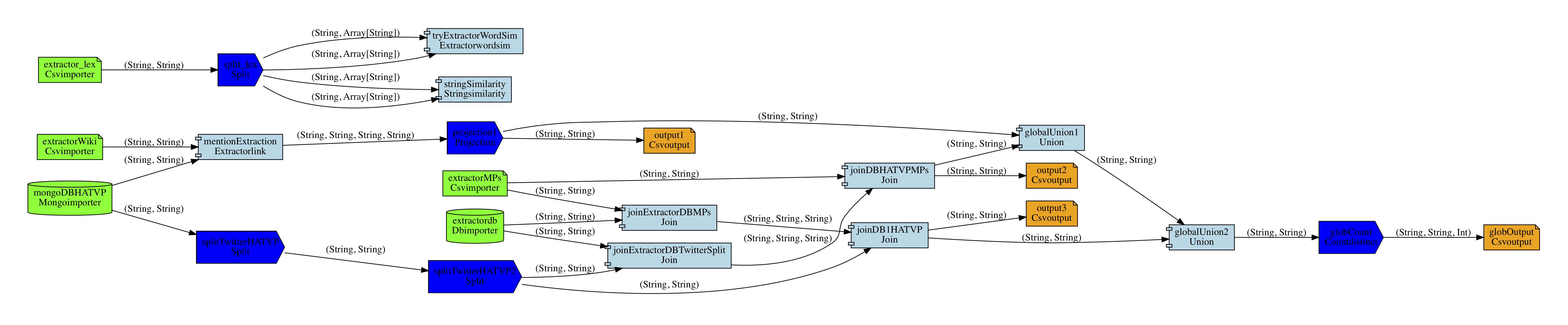

DAG representing the program. (It was generated with the -p option of compile.py)

Tweets¶

The tweets are organised in three tables.

The user table contains the primary key uid (the Twitter id), and the screen_name of a user.
The checked_statuses table that represents single tweets. It contains a sid, a uid referencing a user a text and a boolean ret_checked indicating wethter retweeters have been fetched from the Twitter API for this status (This is not always the case because of the limits of the API that make fetching tweets a lot faster than fetching retweeters)
The retweeted_statuses table that represents the action of retweeting a tweet. They have an ID rid, a user ID uid and a status ID sid.

The twitter accounts of both the MPs and lobbyists come from their respective data export deputes.csv under the column twitter and the lienPageTwitter field in MongoDB documents representing the lobbyists.

Extraction¶

Three extraction modules are needed for reading the Mongo database, reading the deputes.csv file and fetching data from the Postgres database.

The operations and modules needed for extracting and using data from those sources are the following (you can find more detailed explanation of the capacities of each module in the detailed module reference:

The Mongo reader module is specified below, where dbName is the name you chose for your Mongo DB, and "publications" is the name of the main collection.
{
     "name": "mongoDBHATVP",
     "moduleType": "mongoImporter",
     "dbName": "testdb",
     "collection": "publications",
     "requiredFields": ["lienPageTwitter", "denomination"]
}
Here the reader is instructed to query both the content of "lienPageTwitter" and "denomination" for each element of the collection.
The CSV file reader is another module and therefore also needs both a name and type. Moreover, a path to the file and dataType must be provided.

Since the delimiter in the file is ; instead of the standard comma, a fieldDelimiter is also added. Finally, since the CSV file has named columns, we can use those name to select only the two that are necessary.
{
     "name": "extractorMPs",
     "moduleType": "csvImporter",
     "path": "~/data_journalism_extractor/example/data/deputes.csv",
     "dataType": ["String", "String"],
     "fieldDelimiter": ";",
     "namedFields": ["nom", "twitter"]
}
The Database Extractor works with any relational database that has JDBC support. The module is as follow:
{
     "name": "extractordb",
     "moduleType": "dbImporter",
     "dbUrl": "jdbc:postgresql://localhost/twitter",
     "fieldNames": ["rt_name","screen_name"],
     "dataType": ["String", "String"],
     "query": "select rt_name, screen_name from (select rt_name, uid from (select us.screen_name as rt_name, rt.sid from retweetedstatuses as rt join users as us on (rt.uid=us.uid)) as sub join checkedstatuses as ch on (sub.sid=ch.sid)) as subsub join users on (subsub.uid=users.uid);",
     "filterNull": true
}
The dbUrl field corresponds to the jdbc-format endpoint used to access the database. The field names and data types must also be specified. The query above is quite complete because it is nested and basically retreives every pair of (Twitter user, Retweeter).

The filterNull flag set to true ensures that no null values are outputed.

Processing¶

After the three extractions above, three data flows are available to work with:

(lobbyists Twitter name, lobbyists name)
(MPs name, MPs Twitter name)
(retweeter name, tweeter name)

First, the extracted Twitter names of the lobbyists aren’t names but URLs to their Twitter accounts. The first step is to extract the names from the pattern "https://twitter.com/twitter-name?lang=fr". This can easily be done by chaining two string splitters to separate the strings on "/" and "?". The corresponding modules are:

{
    "name": "splitTwitterHATVP",
    "moduleType": "split",
    "source": "mongoDBHATVP",
    "delimiter": "/",
    "field": 0,
    "reduce": -1
},
{
    "name": "splitTwitterHATVP2",
    "moduleType": "split",
    "source": "splitTwitterHATVP",
    "delimiter": "\\?",
    "field": 1,
    "reduce": 0
}

Note: The delimiter is a regex pattern and therefore the character "?" is represented by "\?", but the antislash must be escaped in strings hence "\\?". Also, column indexing starts at 0 and negative indexing is supported for -1 only ("reduce": -1).

Then, a series of joins transforms pairs of Twitter names and retweeter names into pairs of Lobbyists and MPs names.

There are two separate flows:

One for the tweets authored by lobbyists and retweeted by MPs (joinExtractorDBTwitterSplit and joinDBHATVPMPs)
The other for tweets authored by MPs and retweeted by lobbyists (joinExtractorDBMPs and joinDB1HATVP)

They are explained below:

{
    "name": "joinExtractorDBTwitterSplit",
    "moduleType": "join",
    "source1": "extractordb",
    "source2": "splitTwitterHATVP2",
    "field1": 1,
    "field2": 0,
    "leftFields": [0]
},
{
    "name": "joinExtractorDBMPs",
    "moduleType": "join",
    "source1": "extractordb",
    "source2": "extractorMPs",
    "field1": 1,
    "field2": 1,
    "leftFields": [0]
},
{
    "name": "joinDBHATVPMPs",
    "moduleType": "join",
    "source1": "joinExtractorDBTwitterSplit",
    "source2": "extractorMPs",
    "field1": 0,
    "field2": 1,
    "leftFields": [2],
    "rightFields": [0]
},
{
    "name": "joinDB1HATVP",
    "moduleType": "join",
    "source1": "joinExtractorDBMPs",
    "source2": "splitTwitterHATVP2",
    "field1": 0,
    "field2": 0,
    "leftFields": [1],
    "rightFields": [1]
}

Join modules have two sources with names of other upstream modules; for each of the sources, a field on wich to perform the join, and two optional list of fields that allow to project the output on the desired columns. For example column 0 on the left and all columns on the right for module joinExtractorDBMPs.

Output¶

An arbitrary number of outputs can be added at any step of the process to log an intermediray output for debugging or store a result.

Two CSV outputs correspond to both MPs’ retweets of lobbyists and lobbyists’ retweets of MPs.

{
    "name": "output2",
    "moduleType": "csvOutput",
    "source": "joinDBHATVPMPs",
    "path": "/Users/hugo/Work/limsi-inria/tests/data_journalism_extractor/example/output/output_dep_retweet_hatvp.csv"
},
{
    "name": "output3",
    "moduleType": "csvOutput",
    "source": "joinDB1HATVP",
    "path": "/Users/hugo/Work/limsi-inria/tests/data_journalism_extractor/example/output/output_hatvp_retweet_dep.csv"
}

The

Wikipedia mentions¶

All French MPs have Wikipedia pages. They usually contain a short bio that gives useful information such as previous occupations or major events in the MP’s political career. The Wikipedia API can be used to download the bios and sentence splitting can be applied to obtain the file in example/data/wiki.csv.

From a list of pairs of MP name and sentence, different approaches can extract links between MPs and lobbyists. The simplest one is consists in matching every occurence of a lobby’s name in the sentences and treating it as an indication of the existence of a link between the two entities. It obviously yields some false positives but nonetheless give an indication that the corresponding lobby has had a relation with the MP. It is the example described below.

Extraction¶

Data in wiki.csv is already pre-processed and thus simply needs an CSV importer module to extract the data.

The second field is quoted between $ s.

{
   "name": "extractorWiki",
   "moduleType": "csvImporter",
   "path": "/Users/hugo/Work/limsi-inria/tests/data_journalism_extractor/example/data/wiki.csv",
   "dataType": ["String", "String"],
   "quoteCharacter": "$",
   "fieldDelimiter": "|"
}

Processing¶

The extractorLink module implements a mention extraction algorithm to extract mentions of a given data flow’s elements into an other data flow.

The sourceExtract and targetExtract fields correspond to the column index of the source and target flow. The source is the data flow mentions of the target will be extracted from.

{
   "name": "mentionExtraction",
   "moduleType": "extractorLink",
   "source1": "extractorWiki",
   "source2": "mongoDBHATVP",
   "sourceExtract": 1,
   "targetExtract": 1
}
